GFB Boost Controllers

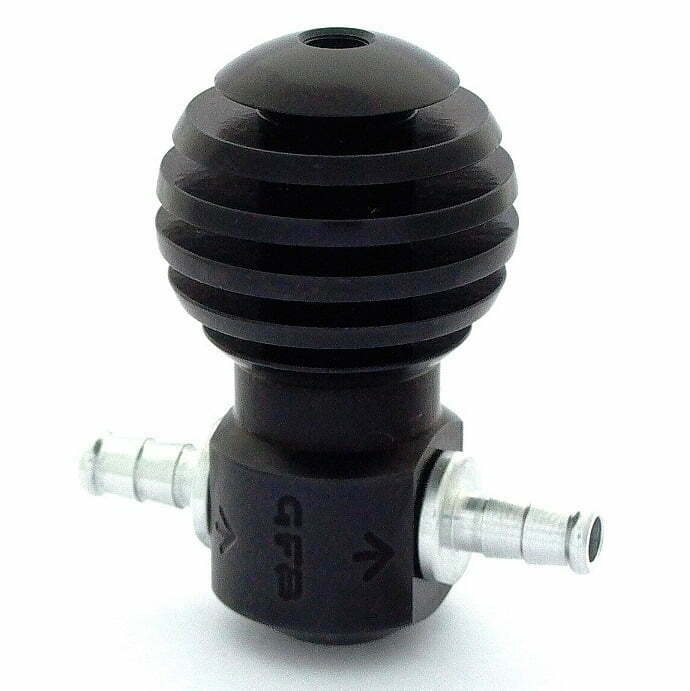

GFB Atomic Boost Controller

A GFB Atomic Manual Boost Controller (Boost Tee) however, not only allows quick and easy boost level adjustment, but it can also reduce the boost threshold (the RPM at which boost starts to rise) and maintain a rock-steady upper limit.

All turbocharged vehicles utilize some form of factory boost control, most of which display a tendency to be conservative in allowing the boost to build up, and then taper away noticeably toward redline.

Another proven bonus of the GFB Atomic is it CAN’T & WON’T Boost Spike as it’s NOT a old fashion “Ball & Spring” unit like everyone else still manufacturer. GFB use a “Tapered Brass Needle” this feature is the reason why we sell them to Dyno Tuners around the country regularly, they know what’s good and what’s not.

The info below is well worth a read:

The GFB Atomic boost Controller will NEVER cause boost spike on your car!!! this is due to the fact they are NOT the run of the mill “Ball & Spring” design that every other manufacturer makes.

Ball & Springs boost taps are the common style tap/bleed valve you’ll find on the market, unfortunately they have been the reason behind many blown engines & shattered turbos for the simply reason that 99.% of them allow boost spike to occur.

HOW a BALL & SPRING Boost Tap works: These manual boost controllers still use a bleed, but the most common technique is to place a steel ball behind the restrictor hole, held shut by a spring. The main problem with this technique is that since the restrictor hole is so critical to boost, placing a free-floating ball behind it adversely affects its performance. Because the ball is free-floating, it can act like a pea in a referee’s whistle, fluttering around in the restrictor hole. This then causes boost fluctuations, and (if the spring is set incorrectly) boost spikes & BANG!!!

This will NEVER happen with the GFB Atomic as GFB use a “Tapered Brass Needle” which allows an accurate and consistant level of boost to be maintained.

HOW a BLEED TYPE BOOST TAP works: GFB manual boost controllers are all bleed-style, which uses a restrictor (a small precision hole in the pressure inlet fitting) and a taper needle adjustment. The restrictor plays a very important role, which must not be underestimated. Basically, without the restrictor, the adjustment needle would not be able to bleed off enough air to lower the pressure reaching the wastegate actuator. The turbo is pumping more than enough air to overcome such a small bleed. By placing a restrictor in the flow path, with the bleed on the other side, the air cannot pass fast enough to overcome the bleed, therefore the pressure will drop at the actuator and boost will rise. This explains why if you install the controller backwards, you will not be able to raise the boost.

The diameter of the restrictor hole is very critical, and the wrong size can affect spool-up, or cause boost spikes. GFB has spent a lot of time and development ensuring the restrictor is optimum, and the RESULTS SHOW.

GFB VNT Boost Controller

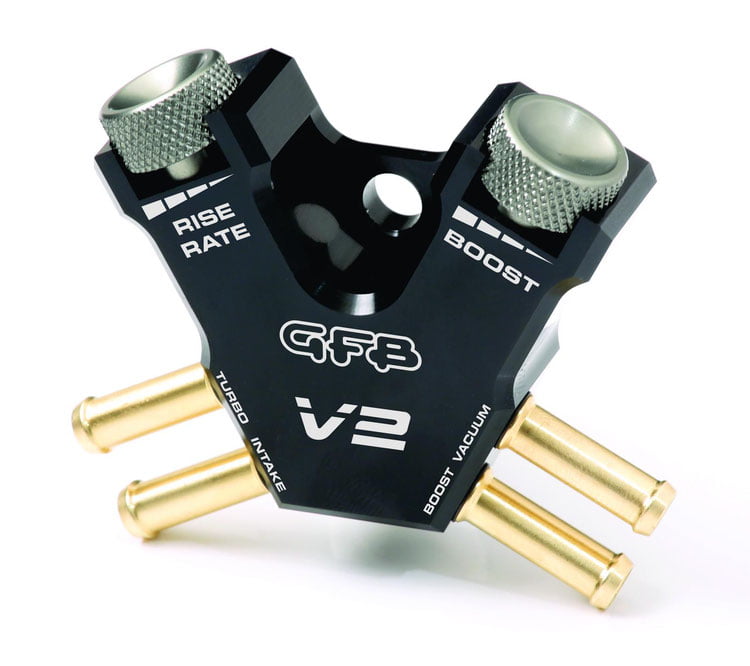

GFB D-Boost V2 VNT Manual Boost Controller (part # GFB 3009)

Reliable and Effective Boost Control for VNT/VGT Turbos!

Want to increase or decrease the boost on your variable vane (i.e. VNT/ VGT) turbo diesel?

Is the factory boost curve erratic and all over the place?

Blown an engine with the factory boost control system?

Then the V2 is for you!

It’s common knowledge that some engines with vacuum operated ECU controlled VNT/VGT turbos suffer erratic boost behavior, to the point where turbo
or engine failures can occur, even on completely stock vehicles. The V2 takes over from the factory ECU control and ensures a stable and repeatable boost curve, which your
engine will thank you for!

Cleverly packaged within a black anodized CNC-machined 6061 aluminum housing are two individual adjustment dials, each having a separate and
unique adjustment function.

This first dial sets the boost pressure, whilst the other is used to adjust the boost rise rate, i.e. how fast the turbo spools, meaning you
can tune your boost to suit any driving conditions.

PLEASE NOTE:

Any form of boost control should be considered a tuning tool rather than a bolt-on power adder, and therefore adjustments should be done with a boost gauge,
appropriate fueling, and knowledge of the limits of the engine/turbo to maximize the performance gains and reliability from using this product.

Diesel VNT Boost Controller

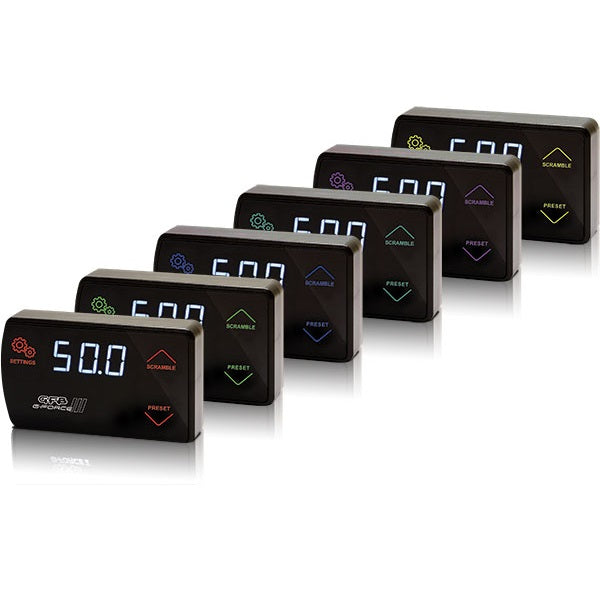

GFB G-Force 3 Electronic Boost Controller

GFB G-Force III with Air/Fuel Ratio Display

Boost Control at Your Fingertips

The latest iteration of GFB’s feature-packed electronic boost controller now has the ability to monitor and display your engine’s air/fuel ratio in either Lambda or AFR.

By connecting the analogue output of most wideband O2 controllers (i.e. Innovate LC-2, AEM UEGO etc, sold separately) to the G-Force III’s auxiliary input, you can toggle between boost pressure and air/fuel ratio display. Not only does this save you from having to install a separate AFR gauge in your car, it can also save your engine!

A lean mixture at high boost can destroy an engine in seconds, and a stand-alone AFR gauge is next to useless when accelerating hard as your concentration is likely to be (and should be!) on the road in front of you. The G-Force III safeguards your engine against a lean mixture by lowering boost to the minimum setting, and visibly warning you by flashing the display lighting.

Whether your car is a daily driver or an all-out track weapon, the G-Force III has the features to tailor boost to suit your needs. Set up to 6 boost presets and select on the fly, use the scramble feature for overtaking, launching, towing, or protecting the engine, and you can even customize the lighting colour to suit your interior! No other EBC on the market offers the features, control, ease of use, and value for money like the G-Force III!

GFB G-Force 3 Specs: (Part # GFB 3005)

• FOR BOOST PRESSURES UP TO 50PSI (3.45BAR, 345KPA)
• ADJUST PEAK BOOST, RISE RATE, AND CLOSED-LOOP CORRECTION
• DISPLAY BOOST PRESSURE IN PSI, BAR, OR KPA
• 6 BOOST PRESETS, INDIVIDUALLY PROGRAMMABLE
• UNIQUE “SCRAMBLE” FEATURE WITH REMOTE SWITCHING
• PEAK BOOST RECALL
• AIR/FUEL RATIO DISPLAY IN AFR OR LAMBDA (WHEN CONNECTED TO A WIDEBAND O2 CONTROLLER)
• SEPARATELY ADJUSTABLE OVERBOOST AND LEAN MIXTURE WARNING/BOOST CUT
• TOUCH BUTTONS WITH USER SELECTABLE ILLUMINATION COLOURS
• AUXILIARY INPUT TO SWITCH BOOST PRESETS OR ACTIVATE SCRAMBLE
• ½ DIN SIZE CASING, FITS STANDARD STEREO SLOT
•

Air/Fuel Ratio Display – NEW PRODUCT!!!

Boost Control at Your Fingertips

*NOTE*

*The GFB G-Force does not work with most Twin Turbo Sequential configurations only Parallel Twin Turbo configurations & Single Turbo Set up’s*.

GFB G-Force 3 Electronic Boost Controller
