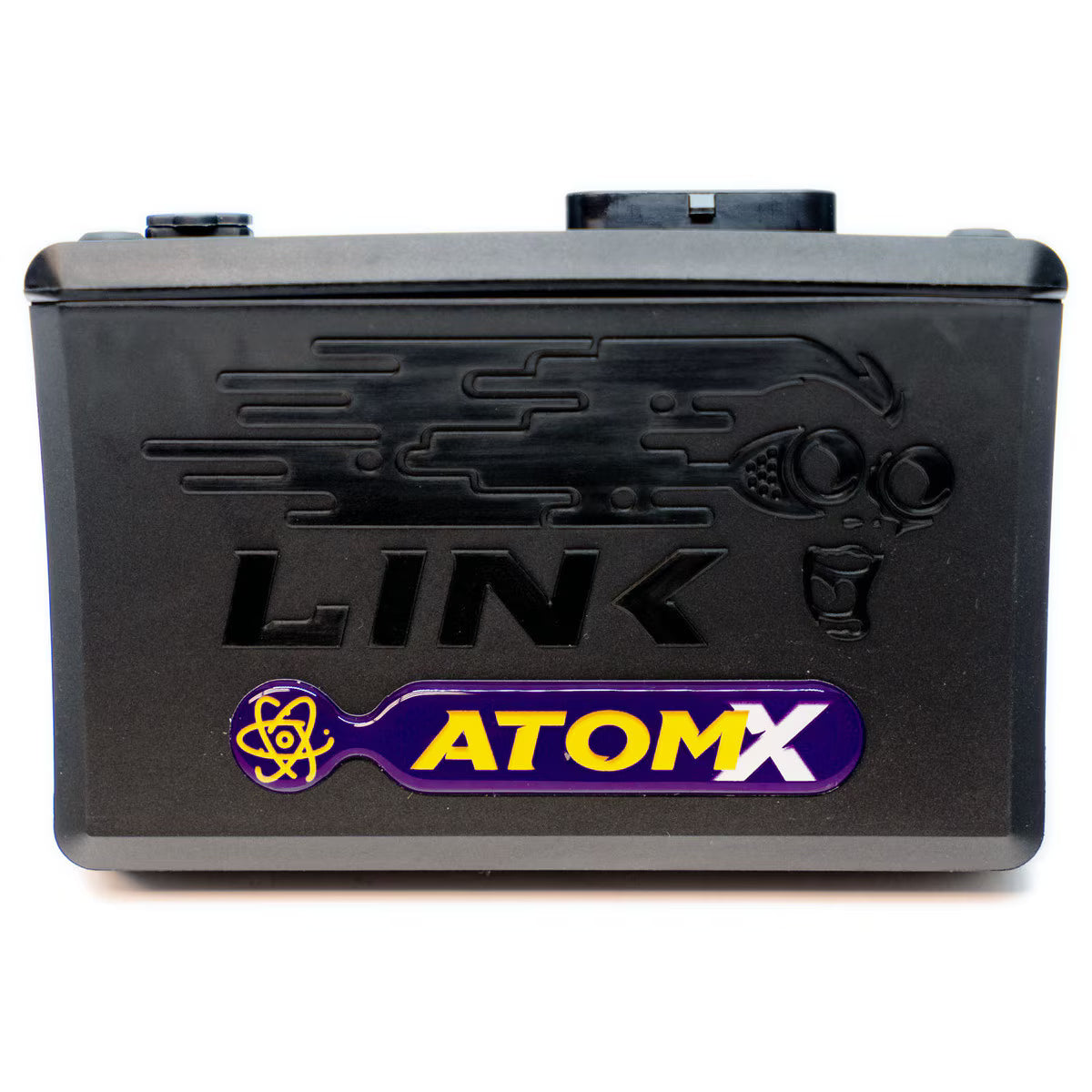

AtomX

Small, but mighty!

The AtomX can control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire. Now featuring Knock Control.

This makes it ideal for naturally aspirated engines that just need a re-tune and don't need all the extra sensors and features that come with our higher level ECUs.

The Link G4X AtomX ECU may be our entry-level ECU but don't let its size fool you. The AtomX has expanded data logging and uses the same microcontroller as the entire G4X range! The processing unit is more responsive and has higher bandwidth than its G4+ Atom II predecessor.

G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.

G4X features 8 x faster communications speed than G4+ ECUs, allowing you to download logs 8 x faster and pushes all the logging quickly up to a new and improved PCLink – available for download below in the features tab.

The AtomX is an automotive control unit.

Requires "A" loom.

The AtomX is ideal for:

• 1-12 Cylinder Distributed
• 2-8 Cylinder Wasted Spark
• 1-4 Cylinder Direct Spark
• Odd Fire Engines
• 2-Stroke Engines
• Configurable Firing Order
• Configurable TDC Points (for odd fire)

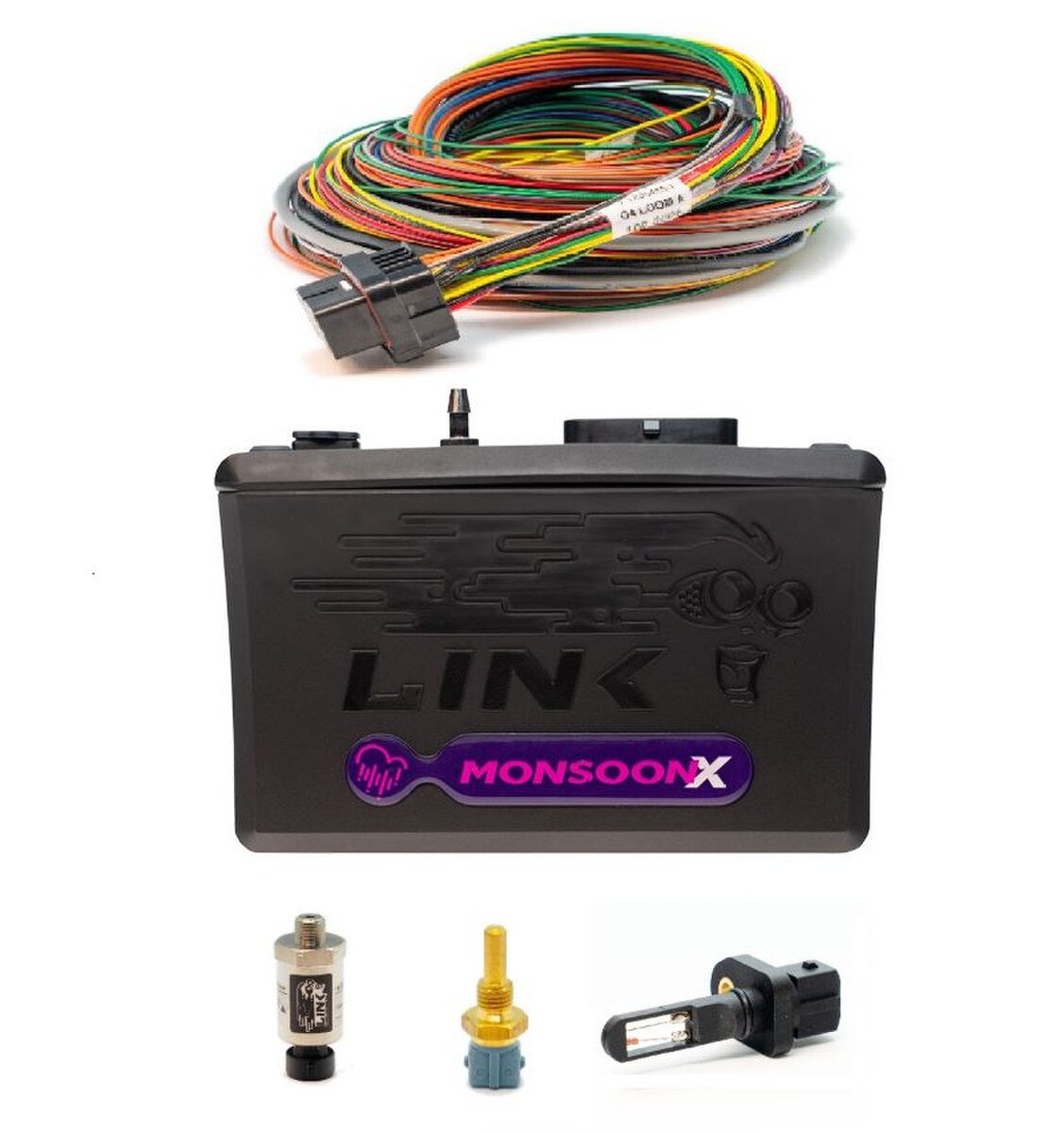

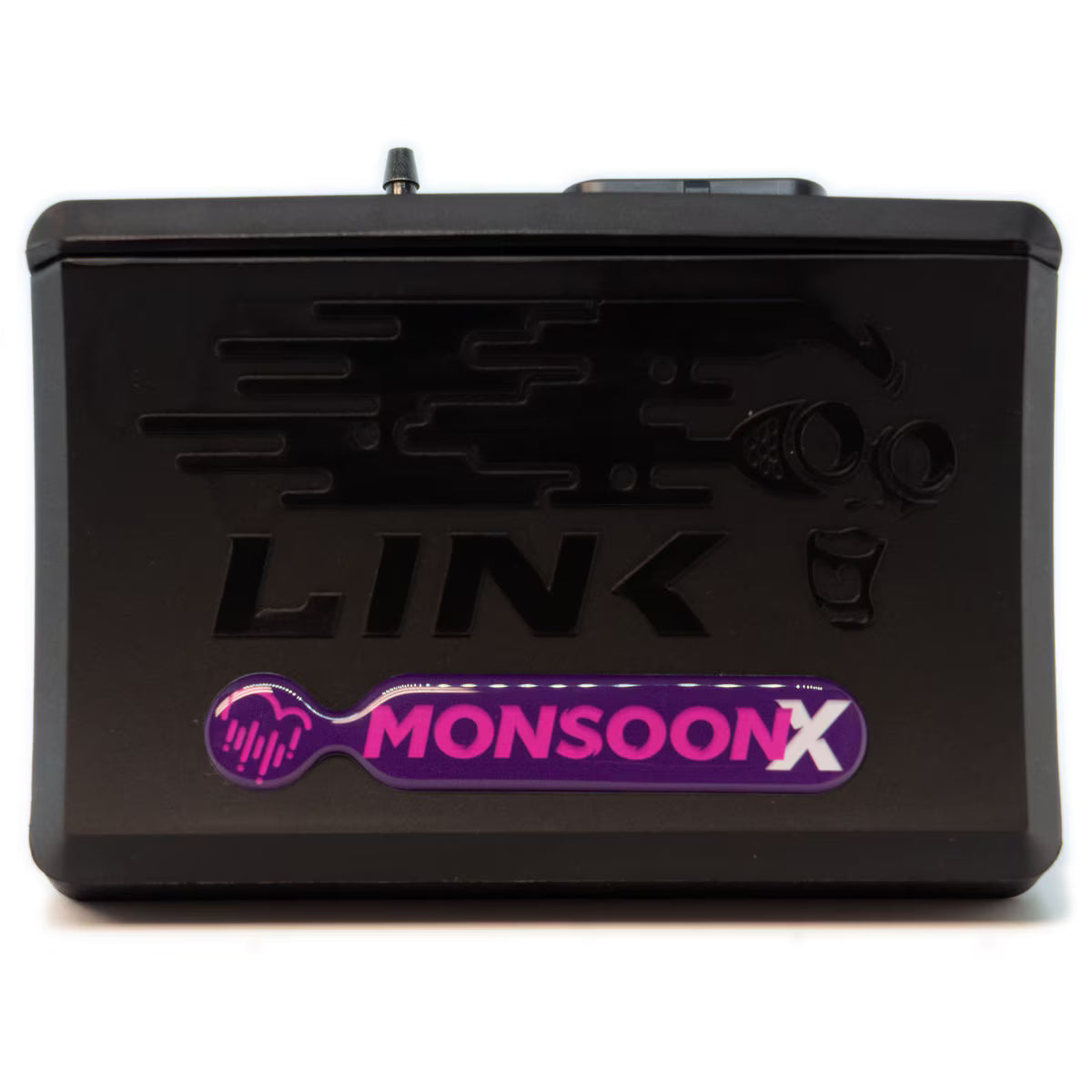

MonsoonX

More features, more powerful.

The MonsoonX will control up to 2 rotors or 4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire.

This makes it ideal for naturally aspirated or turbocharged engines that just need a retune and one or two extra features, so you don’t need to jump up to one of our higher-level ECUs.

The MonsoonX processing unit has been upgraded to provide 512 megabytes of data logging, meaning you can log much more data at a faster sample rate. Control loops are also more precise compared to its G4+ predecessor, along with advancements such as single precision floating point format fuel tables, better resolution within ignition timing and faster communications. These upgrades make the G4X Monsoon a true powerhouse in a small shell.

The G4X logging features 512 megabytes at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.

With the MonsoonX you have all the tuning capabilities of the AtomX, but you can also choose to run some of the following features: Launch Control, Anti-lag, VVT Control and Closed Loop Boost Control. It also comes with a built in 4 bar or 7 bar MAP sensor further reducing installation cost. Now featuring Knock Control.

Note: The MonsoonX will run any of the above features, but it cannot run them all at once. The number of features you can run is dependent on how many of the limited Inputs and Outputs each feature needs.

The MonsoonX is an Automotive Control Unit.

Requires A Loom.

The MonsoonX is ideal for:

1-12 Cylinder Distributed

2-8 Cylinder Wasted Spark

1-4 Cylinder Direct Spark

Odd Fire Engines

2-Stroke Engines

Configurable Firing Order

Configurable TDC Points (for odd fire)

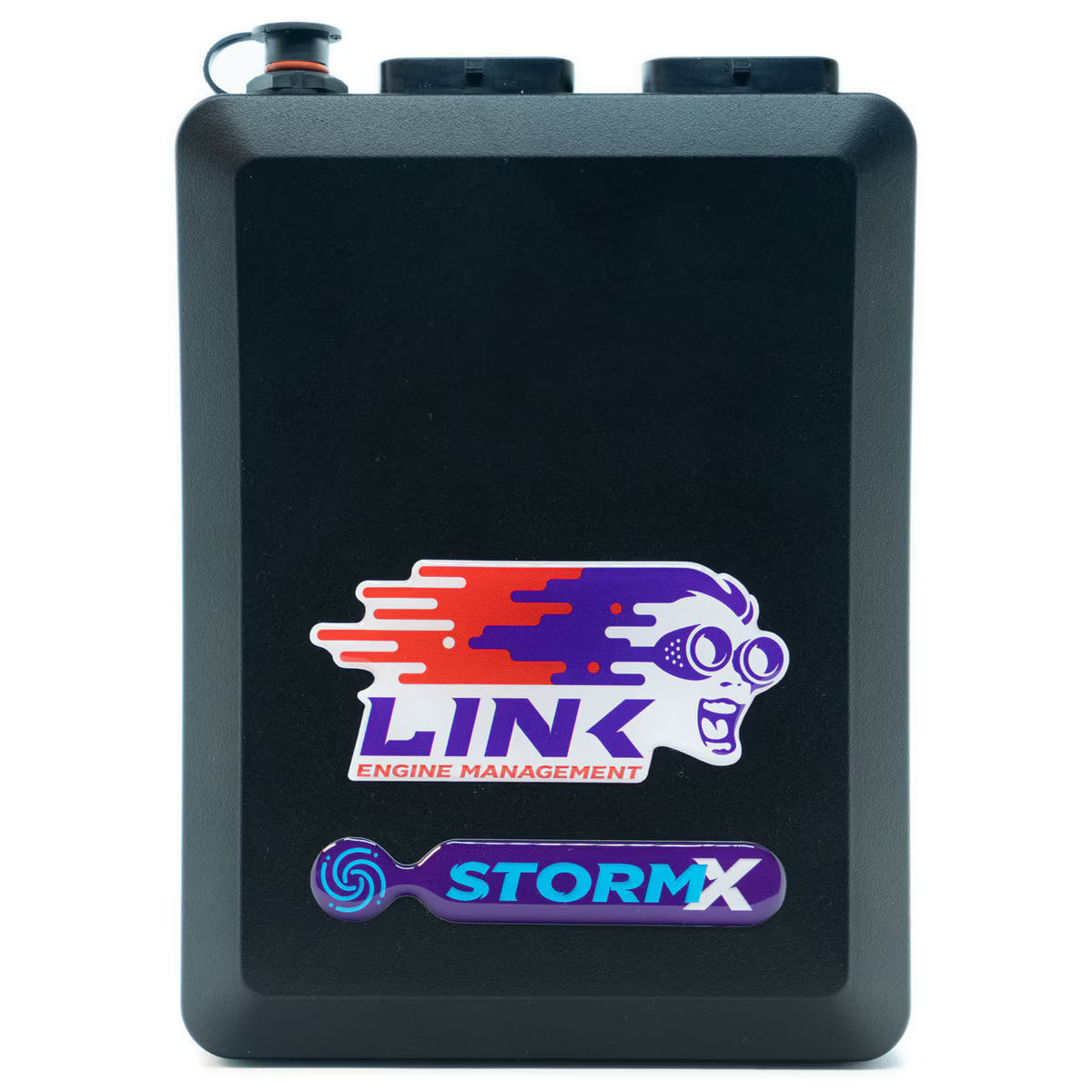

StormX

The Link G4X StormX ECU is the latest version of our trusty, mid-sized ECU. With eight injector and eight ignition drives, it allows sequential injection and direct spark on engines with up to eight cylinders or four rotors.

The StormX has all the upgrades of the AtomX and MonsoonX but offers more advanced tuning features like a built in Trigger Oscilloscope, Stepper Motor Idle Control, Rotary Oil Metering Pump Control, Onboard Knock Control, Open and Closed Loop Boost Control plus most Motorsport features including Full Gear Shift Control, Antilag and Launch Control.

The StormX has expanded data logging and is more responsive with a higher bandwidth than its G4+ Storm predecessor. G4X features 512 megabytes of logging at 32bit using up to 250 channels, each limited to up to 1kHz per channel (by the Operating System), with a maximum of 100 kSamples/sec.

It also features 8 x faster communications speed, allowing you to download logs 8 x faster and pushes all the logging quickly up to a new and improved PCLink – available for download below in the features tab.

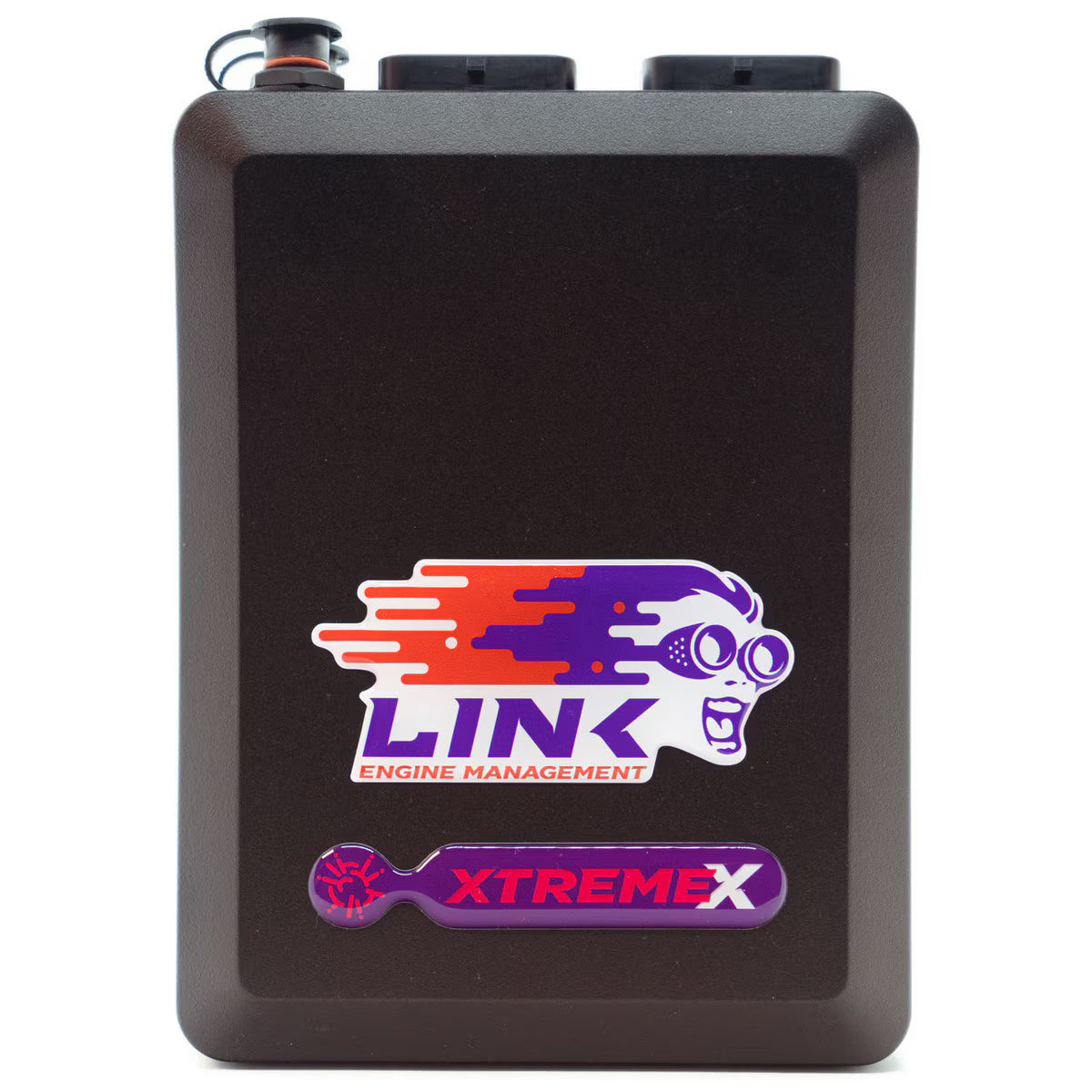

XtremeX

The XtremeX has built in E-throttle and all the advanced features including Anti-lag, Cruise Control and Traction Control.

With 8 Injector drives and 8 ignition drives the XtremeX can control up to 4 rotors or 8 cylinders with sequential injection and direct spark. The XtremeX is a great choice for professional level motorsport or more demanding road car applications.

Please note: for peak & hold please contact a Link ECU Sales Person to purchase a G4+ Xtreme ECU.

Requires "A" & "B" Looms for installation.

If it is Onboard Digital Wideband Lambda Control you are after, consider the Fury.

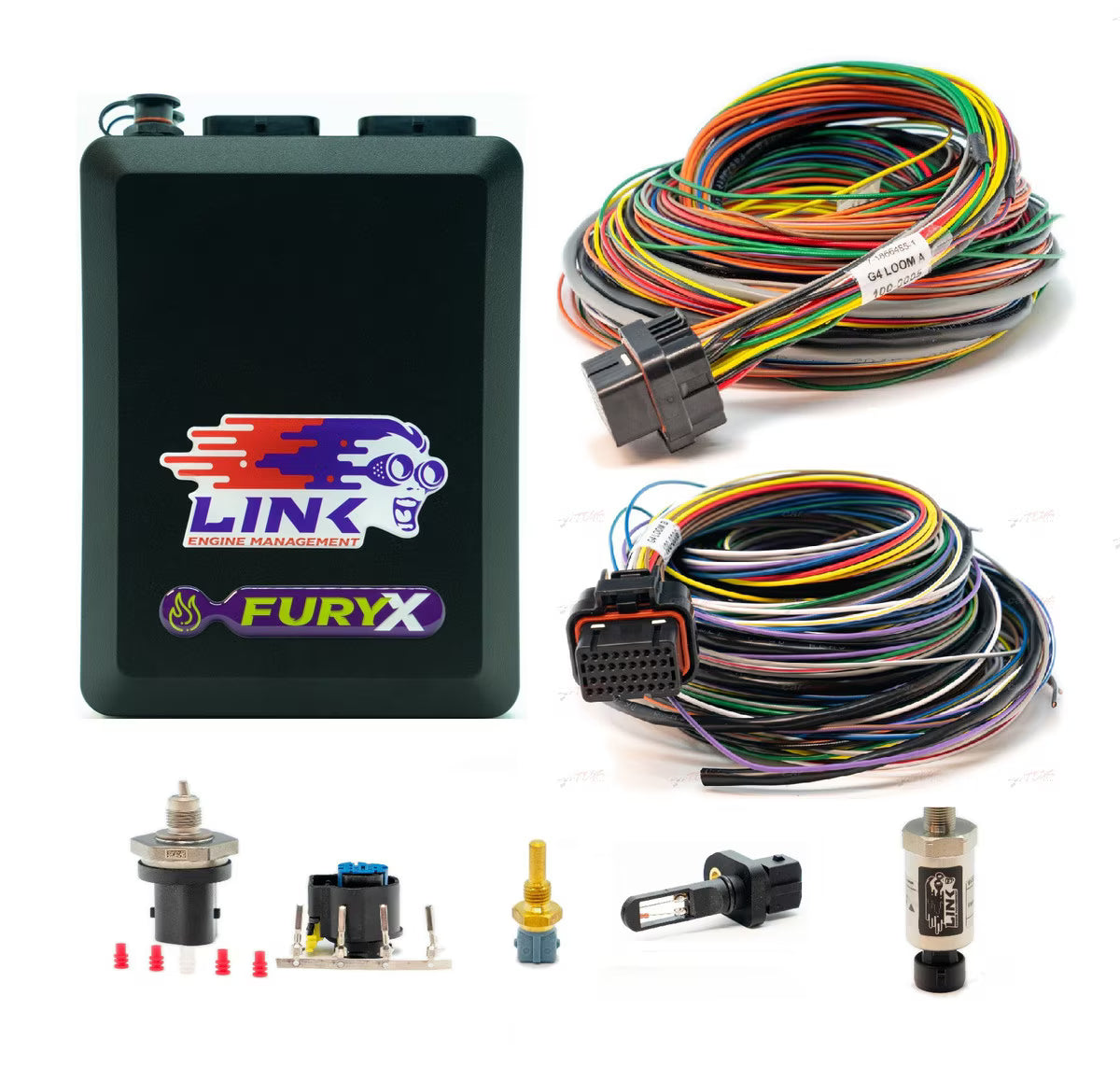

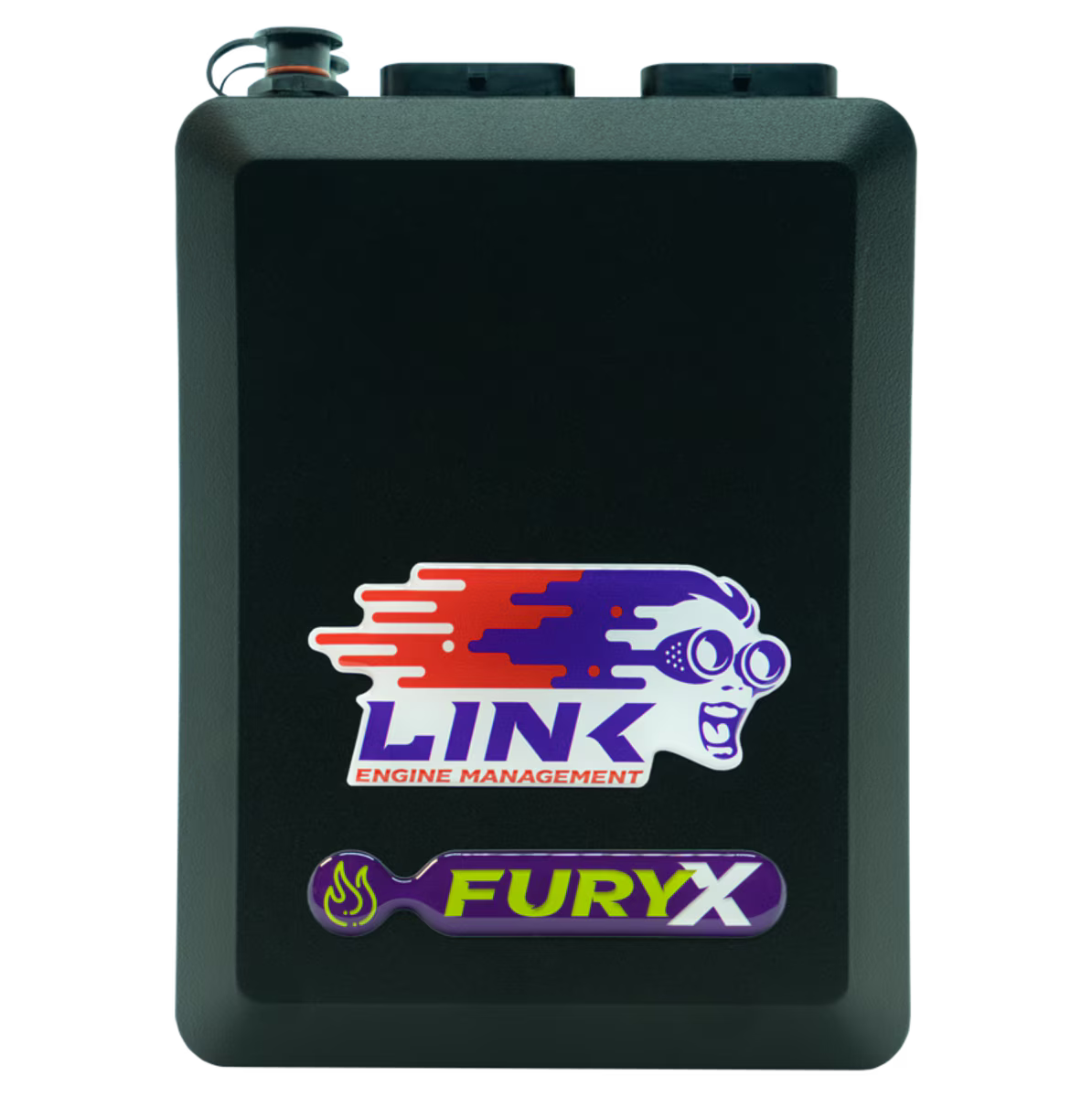

FuryX

The FuryX is a premium ECU like the XtremeX, but with added Onboard Digital Wideband Lambda Control.

Now on the G4X platform, the FuryX features a faster processor, faster communications & a huge 512 megabytes of data logging!

With 8 injector drives and 6 ignition drives, the FuryX can control up to 3 rotors or 6 cylinders with sequential injection and direct spark, making it an excellent choice for professional level motorsport or more demanding road car applications.

The added benefit of a Onboard Digital Wideband Lambda Controller means higher accuracy of the unit, plus a simple setup.

The FuryX comes supplied with stickers, a quickstart guide, a mounting bracket and a USB tuning cable.

Requires 'A' & 'B' Looms or 'A' & 'B' Pin Kits, not supplied.

See the Specifications tab for a full list of specifications.

If you are after more inputs, outputs or features, consider the G5 Voodoo.
