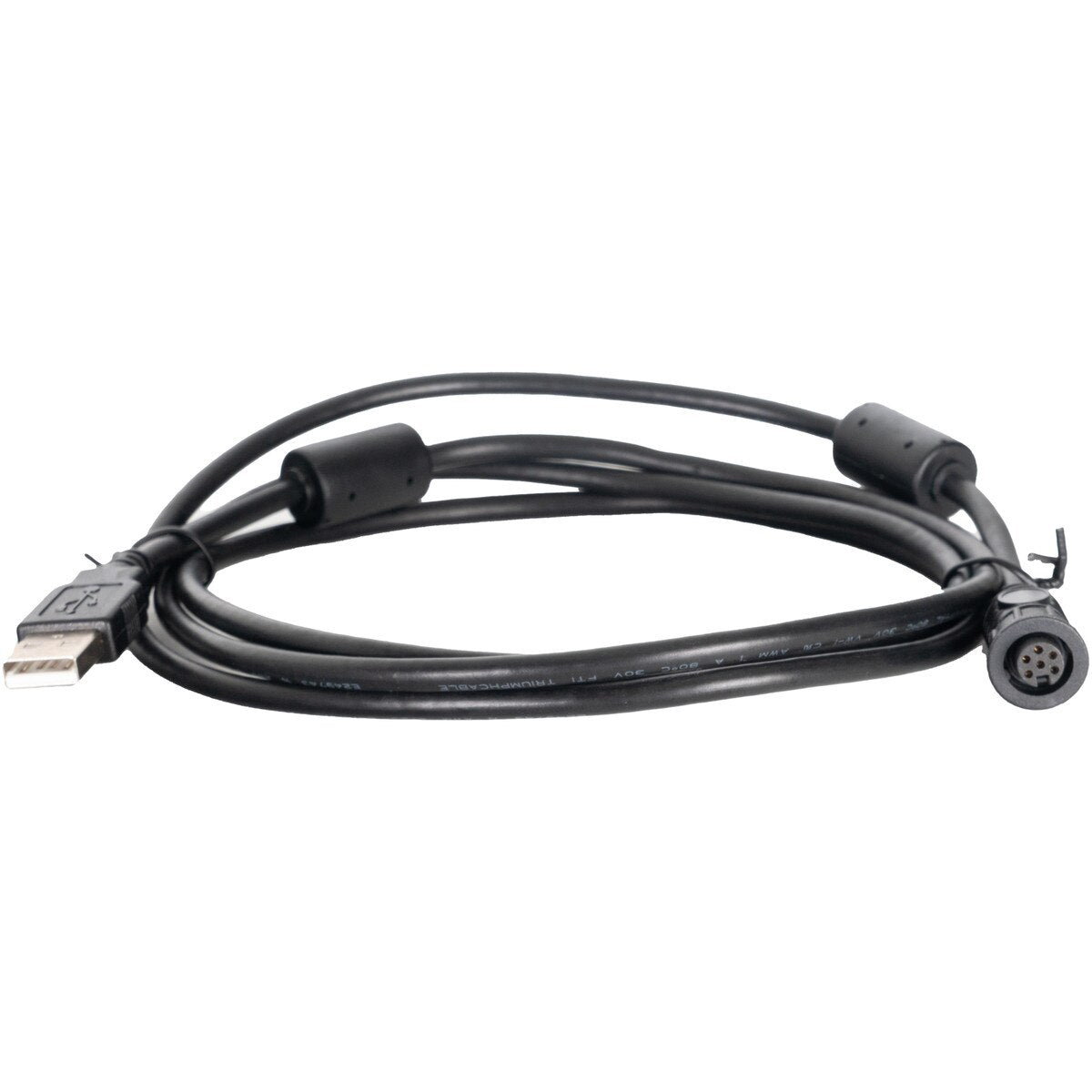

Tuning Cable (CUSB)

Link CAN to USB Tuning Cable. Used to connect the ECU to a computer via USB. A CAN to Serial cable is also available.

Compatible with:

• Link G4X Storm
• Link G4X and G4+ Fury
• Link G4X and G4+ Xtreme
• Link G4+ Thunder
• All Link G4+ and G4X Plugin ECUs
• Link G4+ Storm Black/Blue/Silver
• Any older Link ECU utilising the Link 6 Pin CAN connector
• Vipec V88 and i44
• Link G3

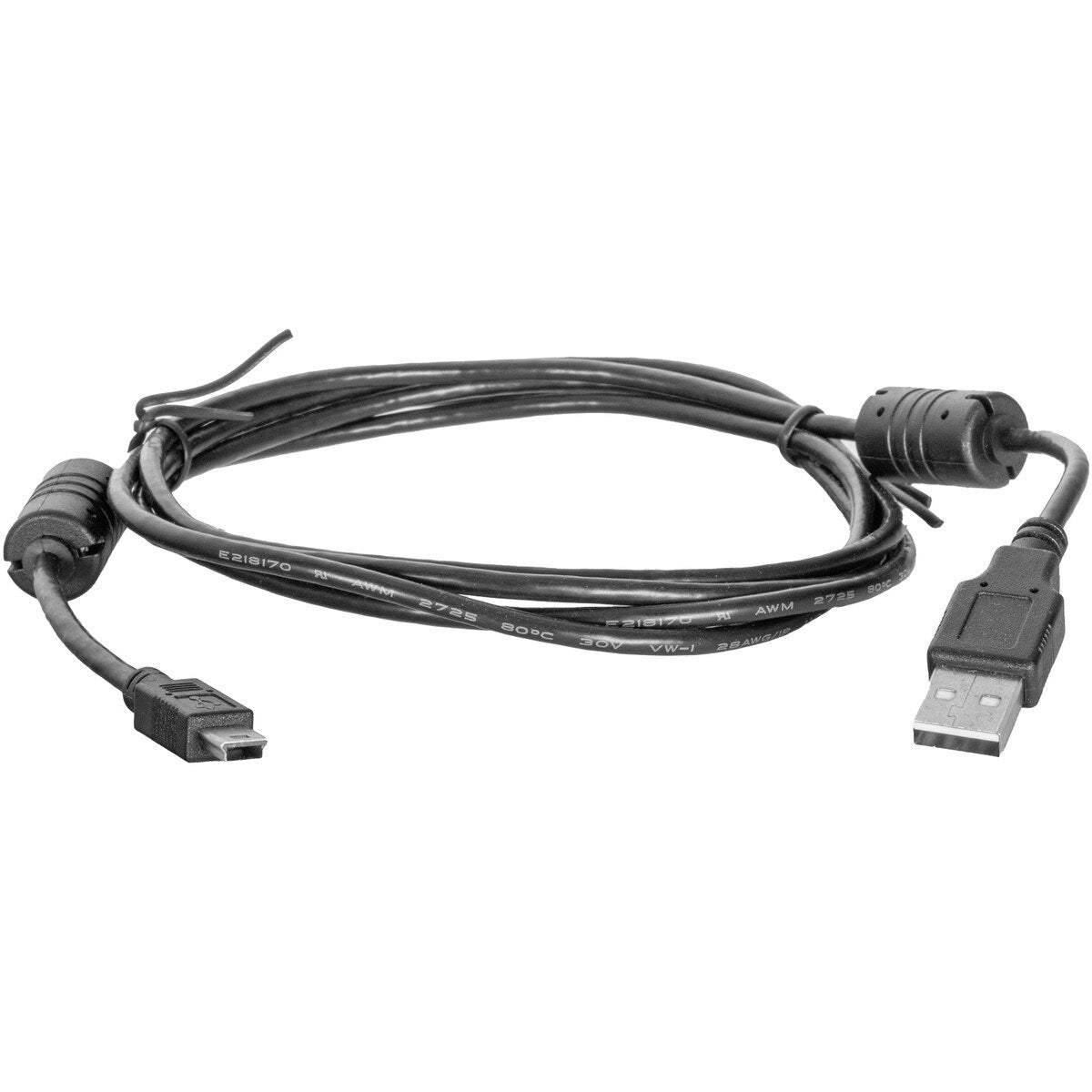

Cable (USBM)

USB Mini Cable. Used to connect ECU to computer for tuning.

Suitable for:

• G4X Atom
• G4X Monsoon
• G4+ Atom
• G4+ Kurofune
• G4+ Monsoon

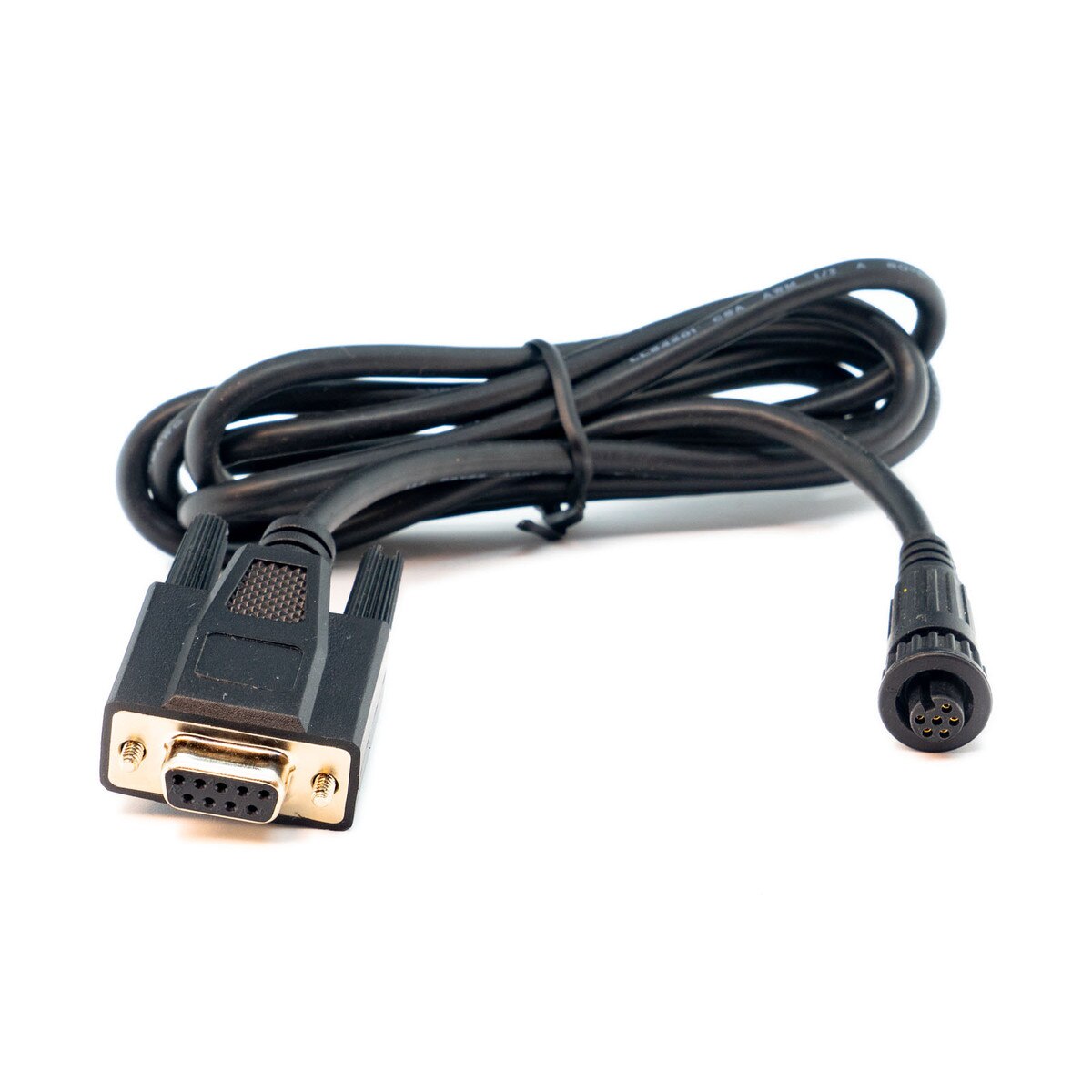

CAN to Serial Tuning Cable

Link CAN to Serial (DB9 Female connector) Tuning Cable. Used to connect ECU to a computer with a serial interface (DB9 Male). A USB tuning cable is also available.

Compatible with:

• Link G4X Storm
• Link G4X and G4+ Fury
• Link G4X and G4+ Xtreme
• Link G4+ Thunder
• Link G4+ Storm Black
• Link G4+ and G4X  Plugin ECUs
• Any older Link ECU utilizing the Link 6 Pin CAN connector

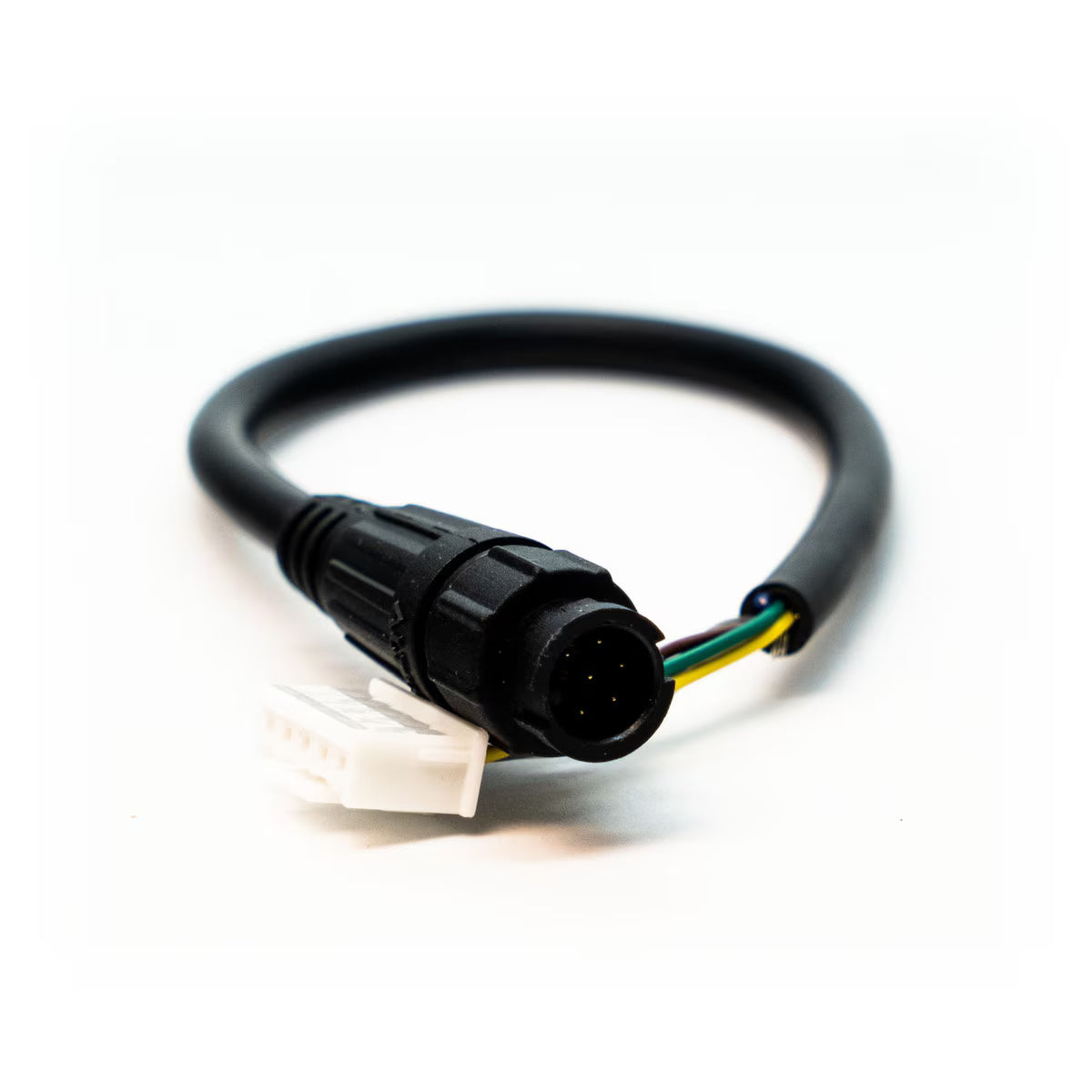

Cable (CANPCB)

Required to add CAN/Serial communications to G4+/G4X Plugin ECU’s. Plugs directly into ECU PCB header. Use the Link CANF connector (purchased separately) to connect.

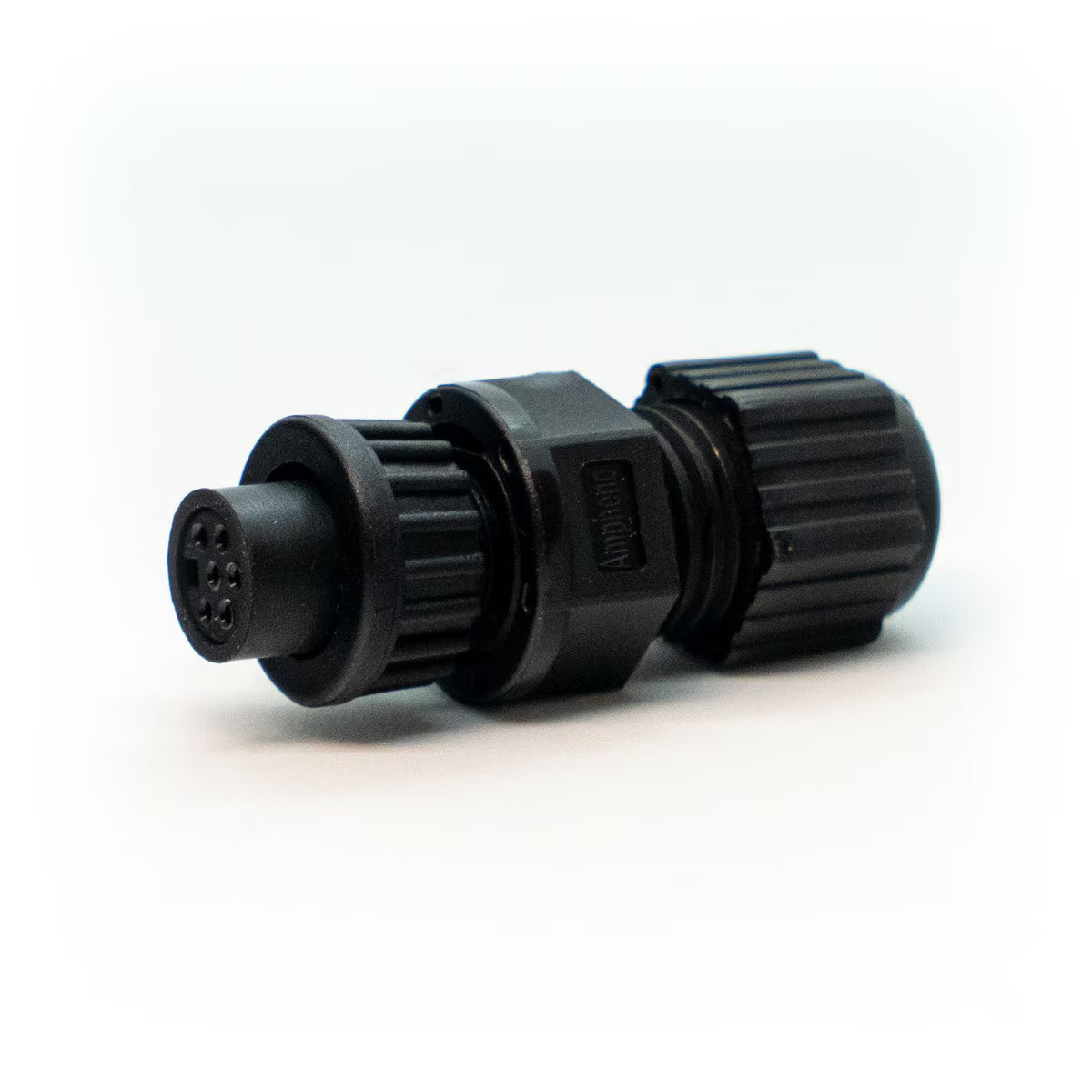

Plug (CANF)

Field Installable CAN Plug - Can be used to wire in to the 6 pin CAN port on Link G4/G4+/G4X ECUs that have a round 6 pin CAN communication port. Requires soldering for assembly.

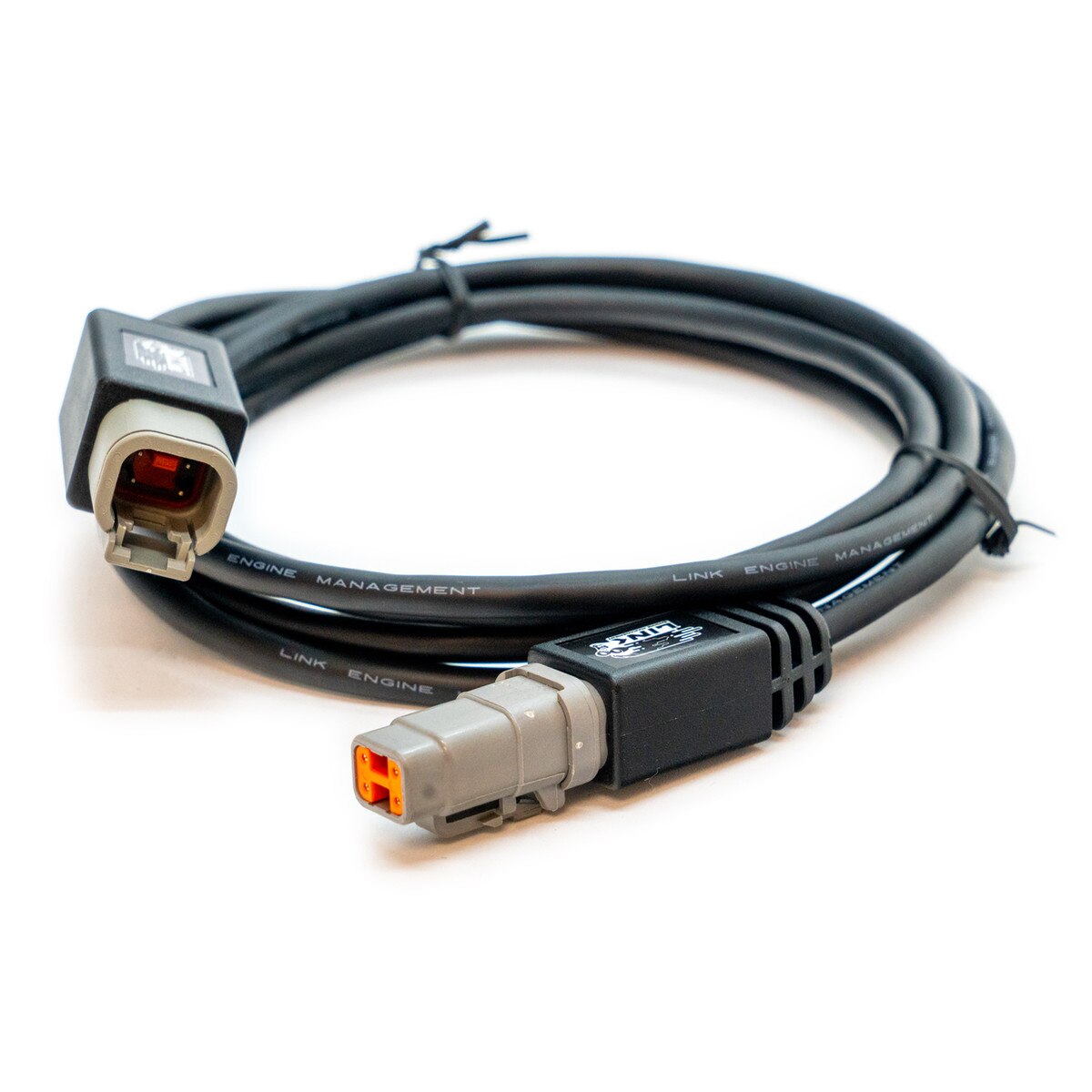

CANEXT - CAN Extension Cable 2m

2 meter CAN Extension Cable for increased reach between your ECU CAN cable and CAN splitter/s or CAN device/s.

Specs

DTM4 Female to DTM4 Male. Includes CAN and Power Wiring.

Length: 2 metres

DTM4 Pin Out

Pin 4: CAN H

Pin 3: CAN L

Pin 2: Ground

Pin 1: 12V

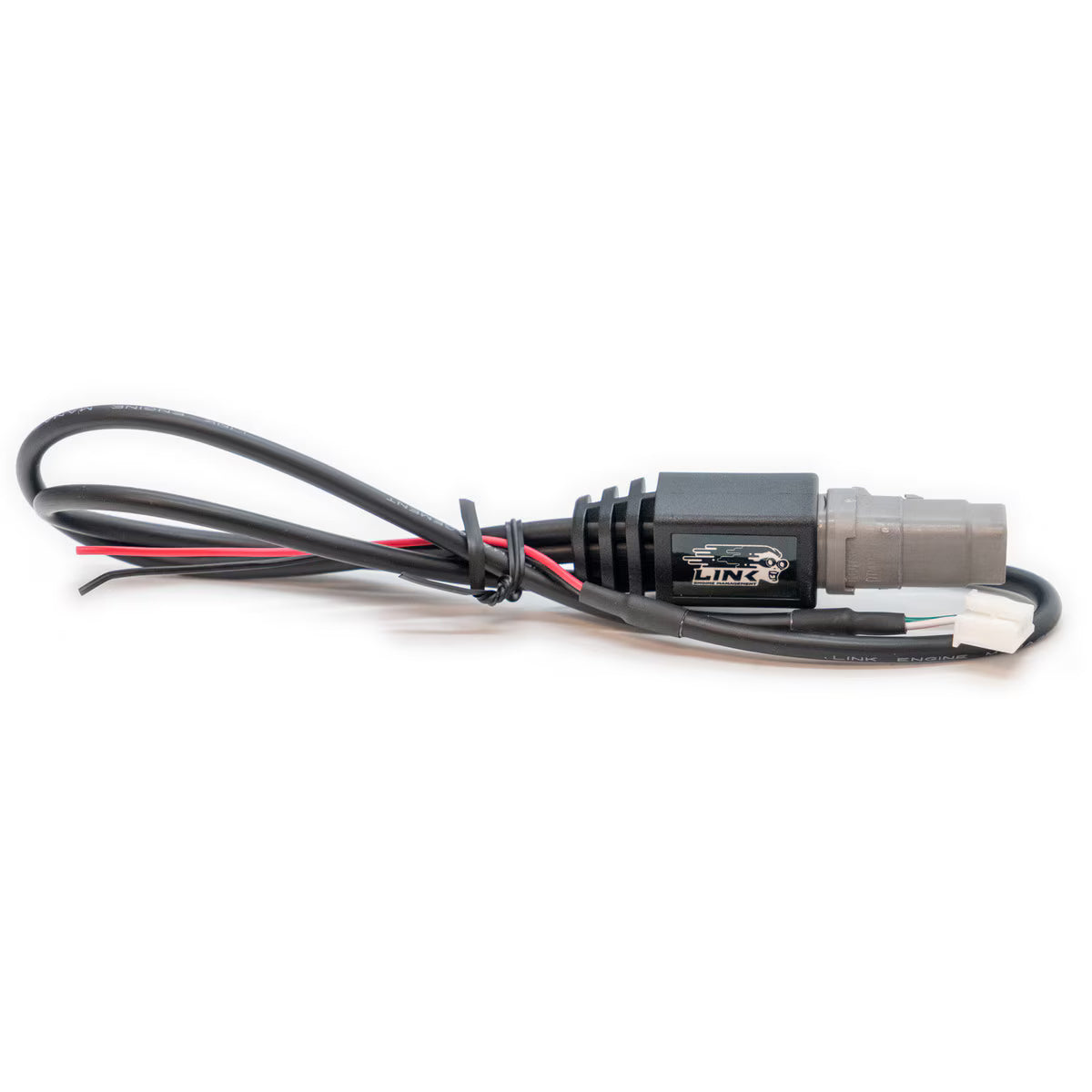

CANJST - CAN Connection Cable for Plugin ECU's (5pin)

Used to add CAN communications to G4+/G4X Plugin ECU’s which have a 5 Pin CAN connector.  Plugs directly into the CAN socket on the ECU PCB. 12V and Ground via flying lead. Terminates to a DTM4 Male Connector which is compatible with other Link CAN accessories including the CAN Extension cable (CANEXT) and CAN Splitter Cable (CANTEE)

Not compatible with the below PlugIns (these require a CANJST4 Cable):
214-4100 - PlugIn ECU G4X Nissan GTR with E-Throttle
217-4100 - PlugIn ECU G4X Nissan S15 with E-Throttle
233-4000 - PlugIn ECU G4X Honda S2000 AP1
228-4000 - PlugIn ECU G4X Subaru WRX V5-6
237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
238-4000 - Plugin ECU G4X Subaru WRX11
239-4000 - Plugin ECU G4X MX5NB2X
240-4000 - Plugin ECU G4X MX5NB1X
243-4000 - Plugin ECU G4X WRX11 USDM

Specs
DTM4 Male to JST4. 12V and GND Terminated to JST5. Length 300mm

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

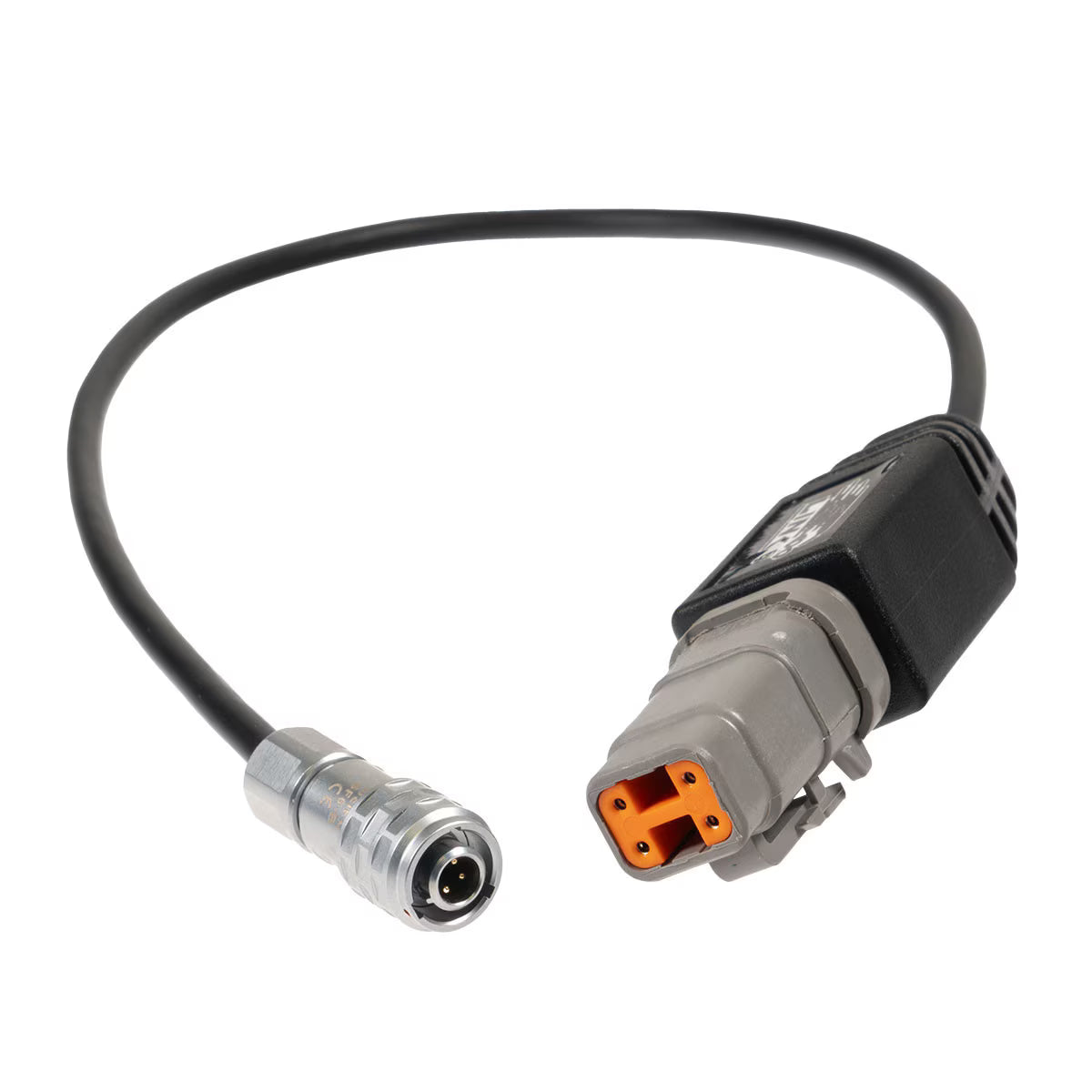

G5 CAN Connection Cable

300mm CAN Cable. Required to add CAN 1 communication to G5 Voodoo Neo ECU's which have CAN accessible via the 4-Pin round Weipu CAN connector on the front of the ECU.

Compatible ECU's:
G5 Voodoo Neo (CAN1)

Specs
DTM4 Male to WEiPU SF610B/P4. CAN Loom Length 300mm. Power for CAN is supplied via this cable from the ECU.

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

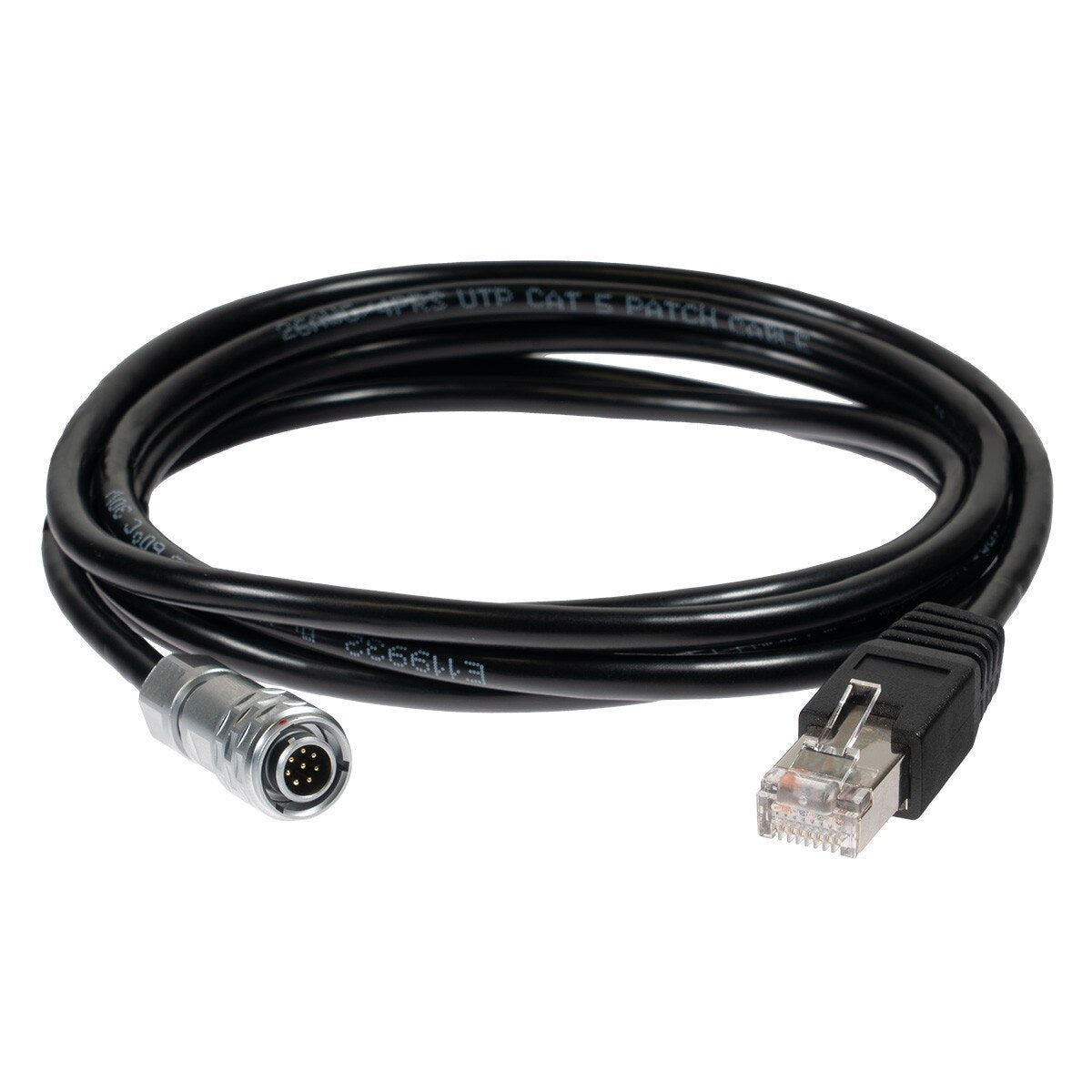

G5 Ethernet Cable

2 metre length ethernet cable, used for connecting PCLink to Voodoo Neo-4 and Neo-6 ECUs. 8 Pin Weipu SF810B to RJ45.

Compatible ECU's:
G5 Voodoo Neo 4 (CAN1)

G5 Voodoo Neo 6 (CAN1)

Specs:
RJ45 to WEiPU SF610B/P4. Cable length 2m.

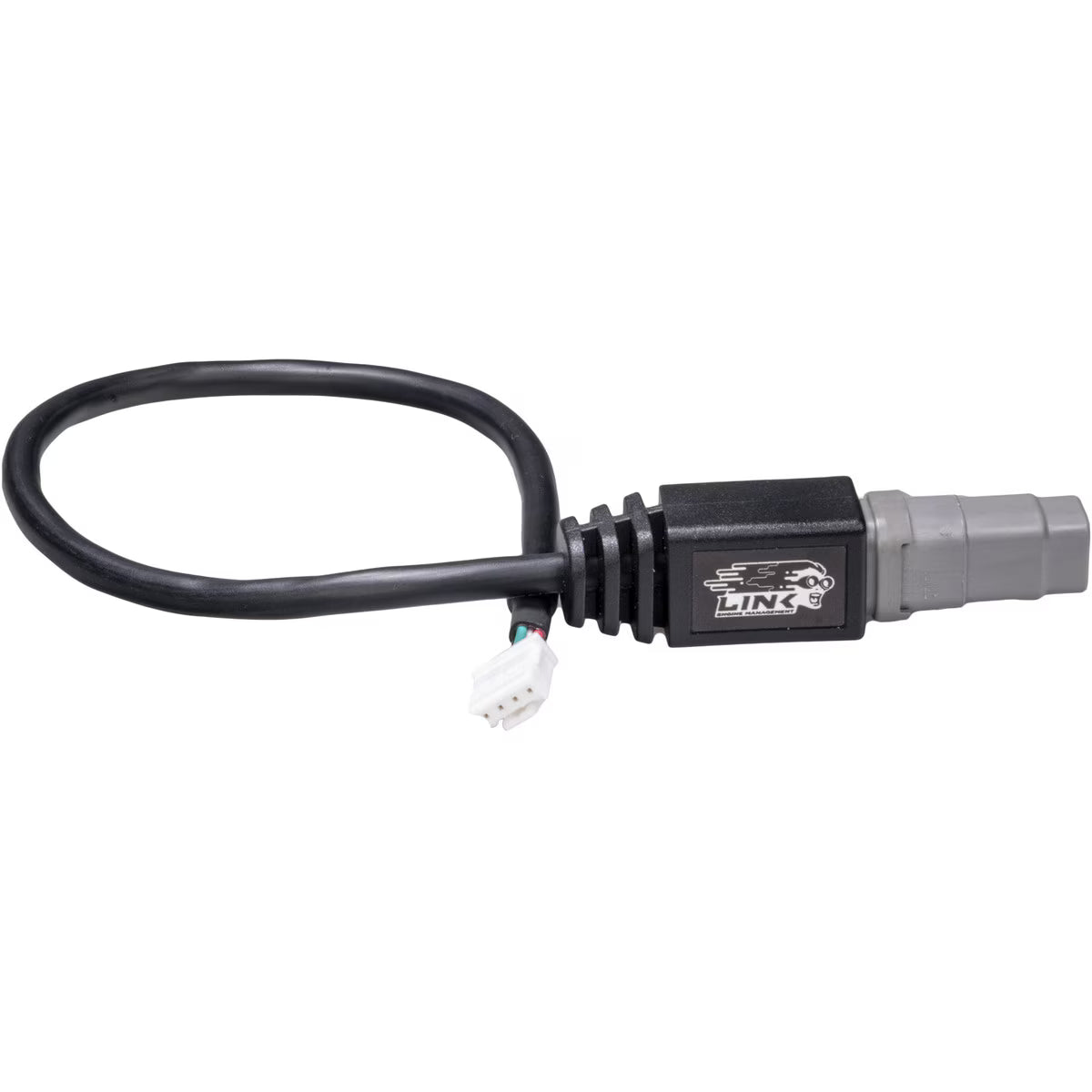

CANJST4 - CAN Connection Cable for Plugin ECU's (4pin)

Required to add CAN communications & power to recently released G4X Plugin ECU’s which have the new 4 Pin powered CAN connector (not the older 5pin CAN connector).  Plugs directly into the socket on the ECU PCB, provides CAN and a protected 12V supply to allow easy connection of CAN accessories.

Suitable for powering a CAN Lambda, Dash, EGT amplifier or other similar low powered CAN devices which have a total continuous current draw of <3A.
Compatible PlugIns:

214-4100 - PlugIn ECU G4X Nissan GTR with E-Throttle
217-4100 - PlugIn ECU G4X Nissan S15 with E-Throttle
233-4000 - PlugIn ECU G4X Honda S2000 AP1
228-4000 - PlugIn ECU G4X Subaru WRX V5-6
237-4000 - PlugIn ECU G4X Honda HC20X Type-R DC5/RSX
238-4000 - Plugin ECU G4X Subaru WRX11
239-4000 - Plugin ECU G4X MX5NB2X
240-4000 - Plugin ECU G4X MX5NB1X
243-4000 - Plugin ECU G4X WRX11 USDM
241-4200 - G5 ECU Plug-In - Toyota GT86/Subaru BRZ LHD
241-4000 - G5 ECU Plug-In - Toyota GT86/Subaru BRZ RHD

Specs
DTM4 Male to JST4. 12V and GND Terminated to JST4. Length 300mm

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V

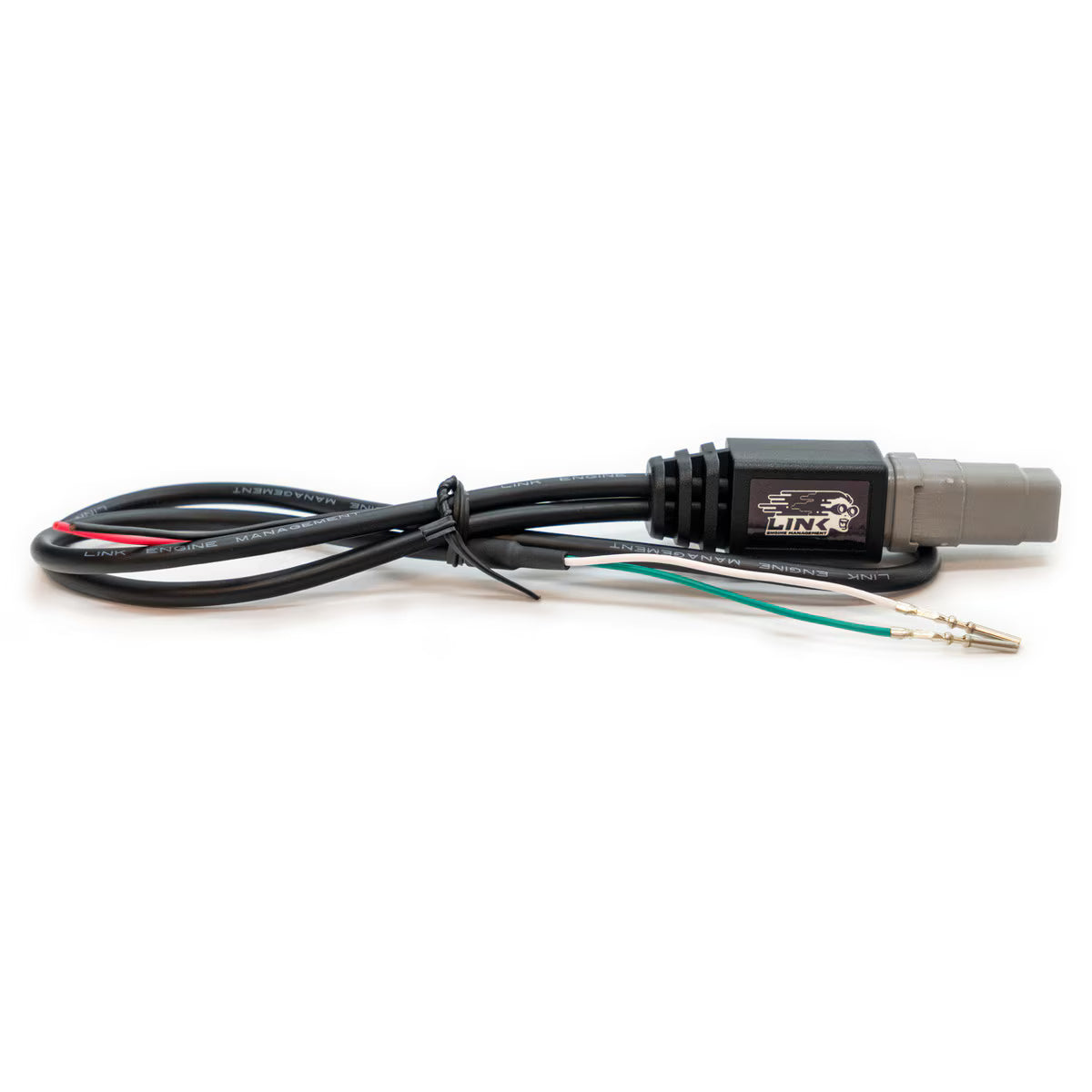

CANSS - CAN Connection Cable for WireIn ECU’s (ECU Header CAN)

Required to add CAN communication to WireIn ECU's which have CAN accessible via the Header.

Compatible ECU's:
G4X/G4+ Atom (CAN1)
G4X/G4+ Monsoon (CAN1)
G4X/G4+ Storm (CAN2)
G4X/G4+ Xtreme (CAN2)
G4X/G4+ Fury (CAN2)
G5 Voodoo Pro (CAN1)
G4+ Force (CAN2)
G4+ Thunder (CAN2)

Specs
DTM4 Male to Flying leads. CAN H & L crimped with Superseal terminals. 12V & GND Flying Leads. Length: CAN Loom length 300mm (Flying leads 500mm long)

DTM4 Pin Out
Pin 4: CAN H
Pin 3: CAN L
Pin 2: Ground
Pin 1: 12V
